YEO-100
Semi-closed cell EPDM soft foam sealer

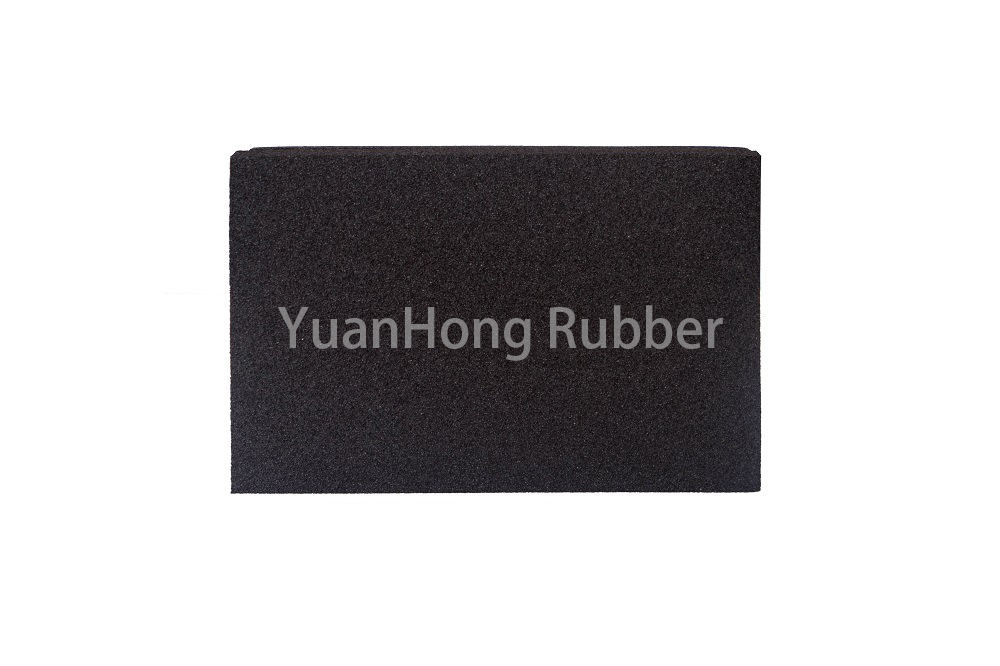

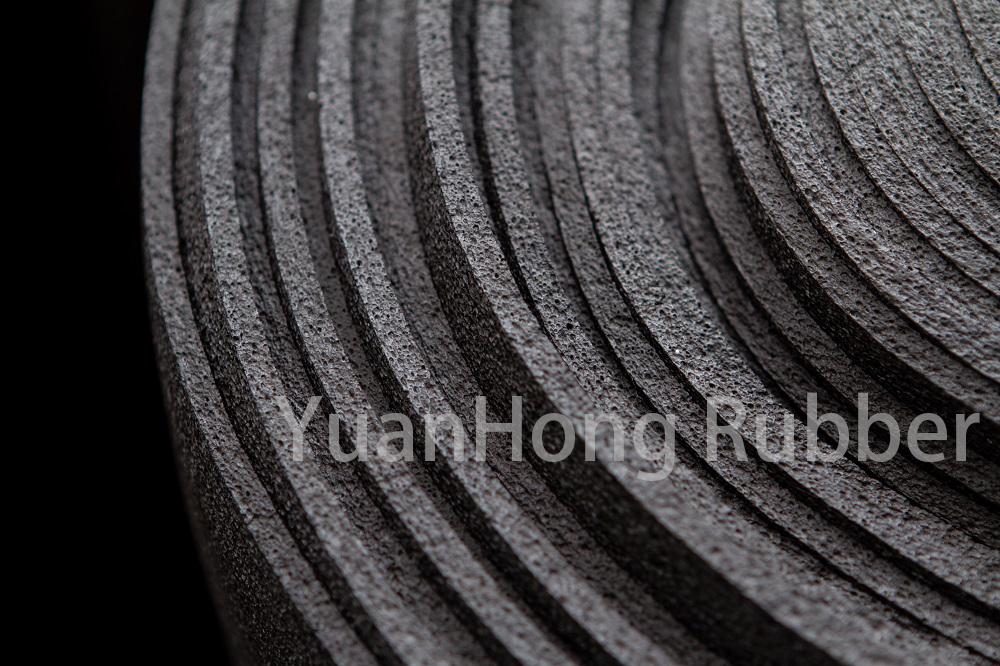

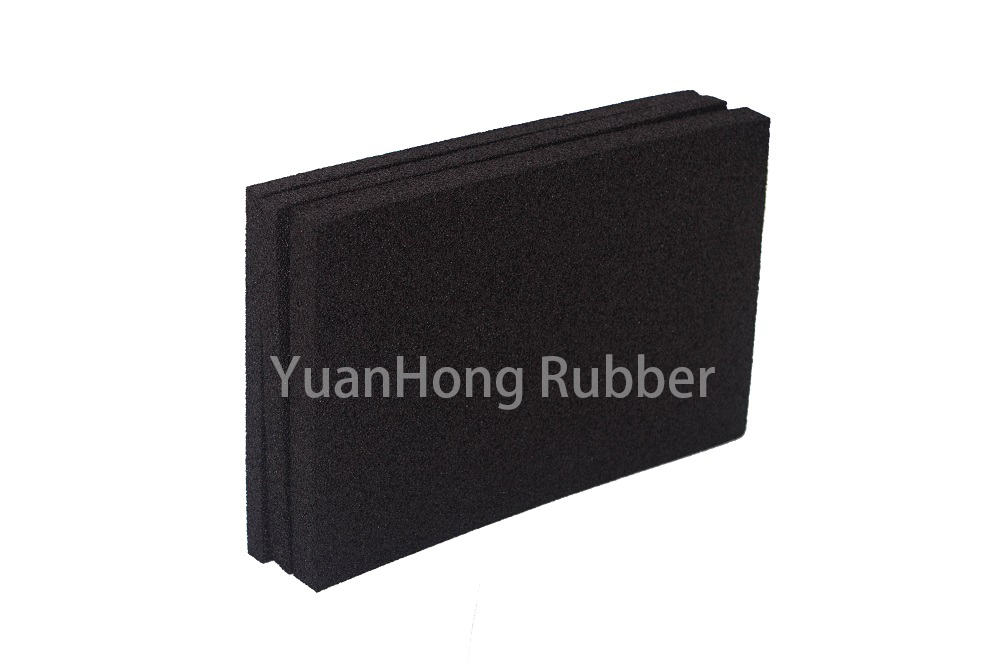

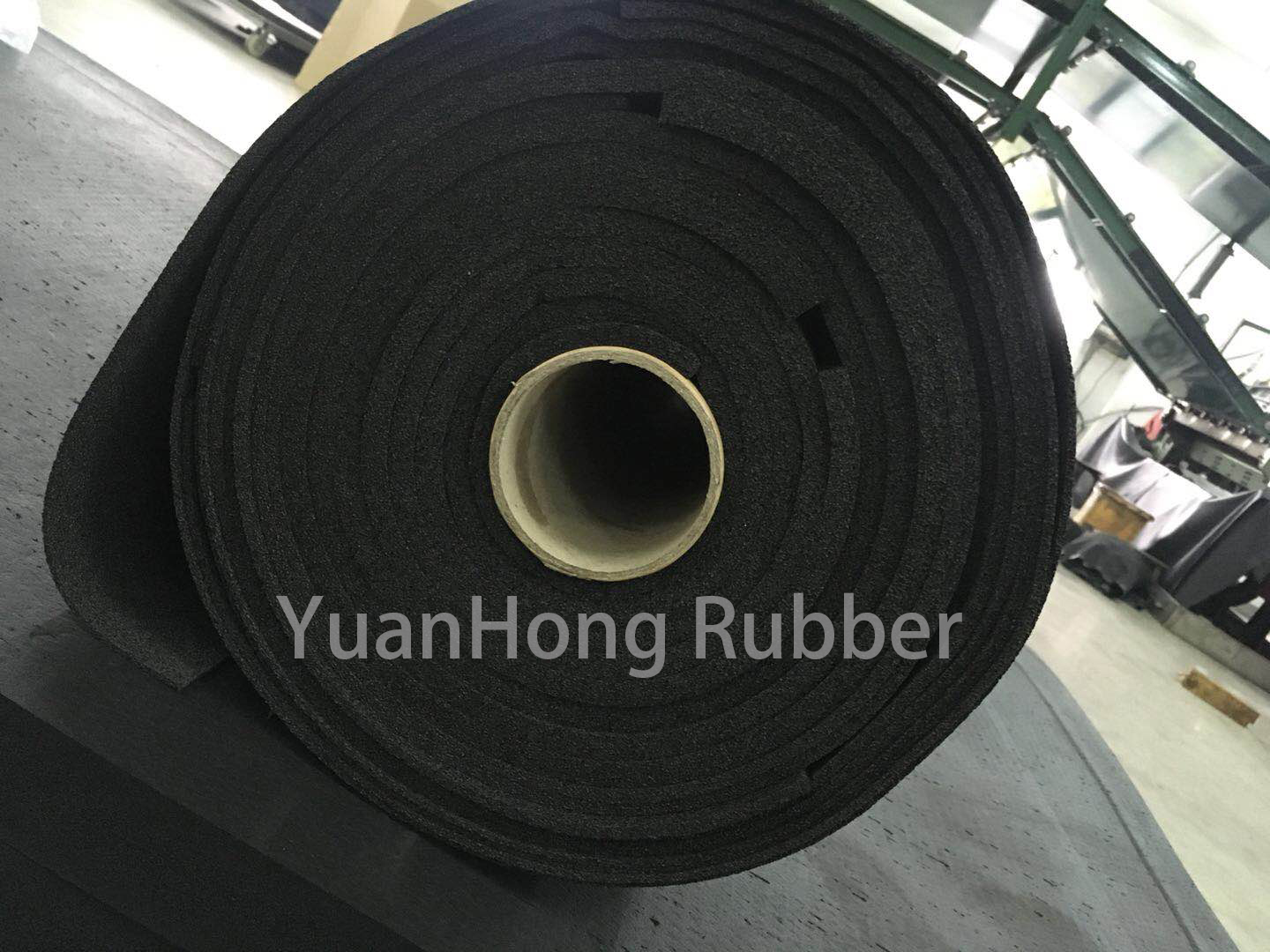

An expanded semi-closed cell foam base on EPDM synthetic rubber blend, for a variety of high performance gasketing and insulation applications.
Main Features
☆Low density, soft for easy compression to effectively seal gaps with large tolerance；
☆Compression of 80% or greater will provide a closed-cell structure;
☆Low compression load, not lead to deformation of opponent parts or structures after filling;
☆Low VOC;
☆Durability, weatherability, cold and heat resistance, ultraviolet radiation resistance, chemical resistance excellent, not easy to deteriorate.
Application
☆Application such as gasketing around HVAC modules, pass-through seals, interior trim seals, component weather stripping, etc.
Standard Size
Thickness（mm） | Width（mm） | Length（m） |
3～30 (3～35 with bottom skin) | 1000 | 2 |
Properties
Base polymer | - | EPDM |
Color | - | Black |
Density | ISO845 | 100±20㎏/m3 |
Compression load | ISO3386 @25% | ≦5 kPa |
Tensile strength | ISO1798 | ≧80 kPa |
Elongation | ISO1798 | ≧400％ |
Compression set | ISO815-1 @50%,24H,23℃ | ≦5％ |
Service temp. | - | -50～130℃ |
Flammability | FMVSS302/GB8410 | ≦100mm/min（5mmt or above） |
*Notice: Above data is only representative value, not guarantee value.
